Sample Meteor GIS images

Summer images (Meteor channels 1, 2 and 3)

These three visible light channels are combined into colour composite images like those below

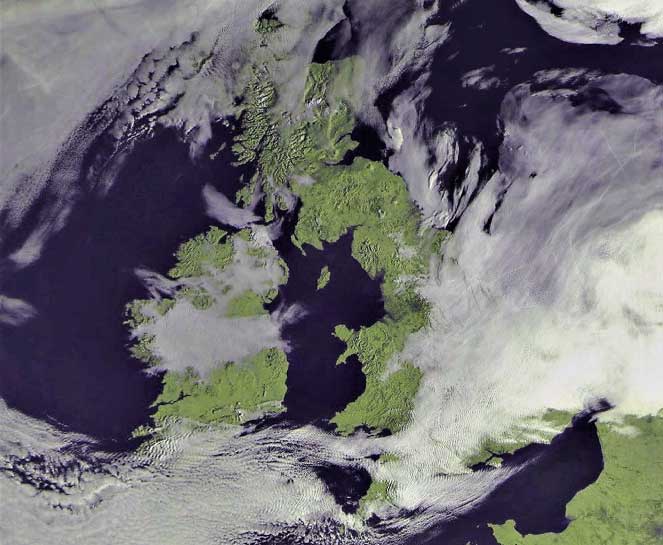

British Isles on March 1, 2021
Image: Rob Bale

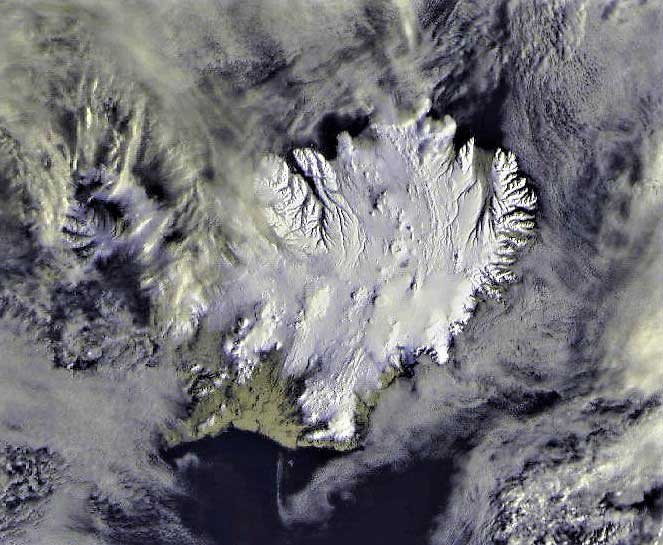

Iceland on March 7, 2021
Image: Rob Bale

British Isles on April 25, 2021
Shapes=0, no overlay applied

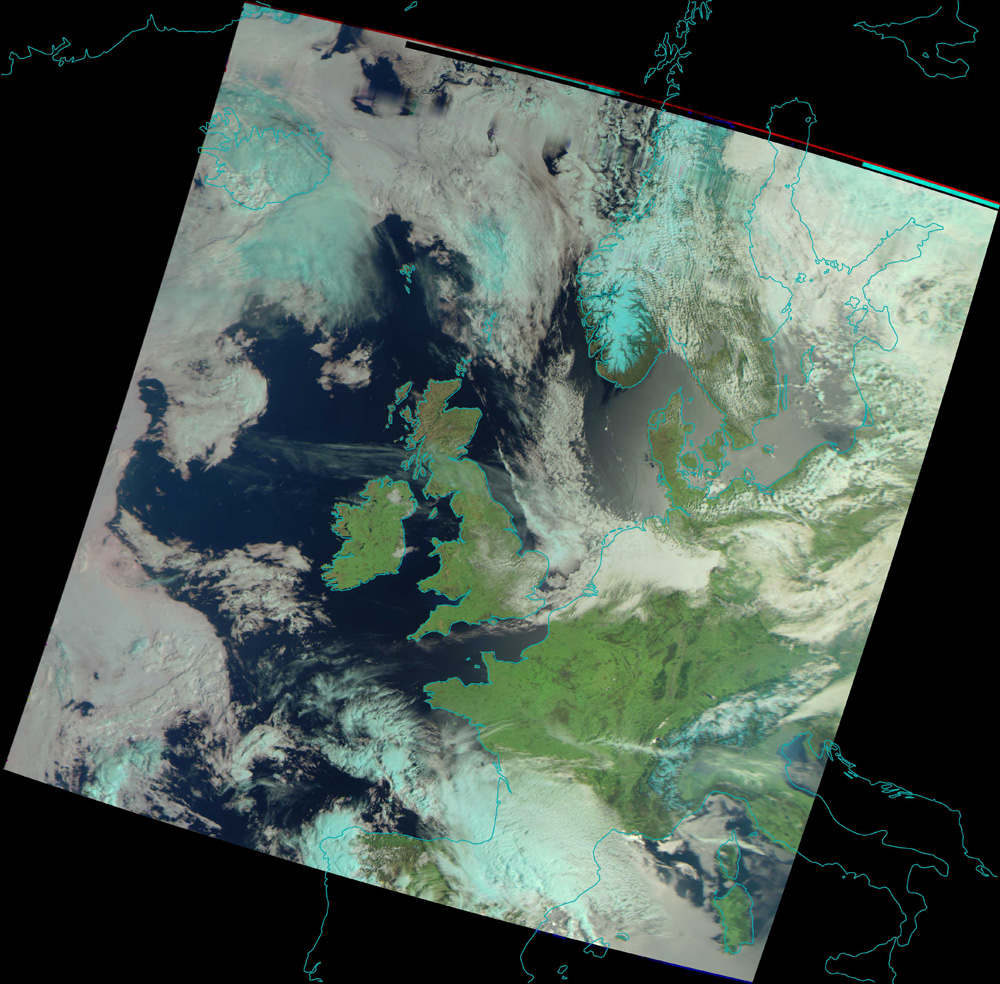

British Isles on April 25, 2021
Shapes=1, Coastline overlay applied

British Isles on April 25, 2021
Shapes=2, Country boundary overlay applied

British Isles on April 25, 2021
Shapes=3, Latitude/Longitude Grid overlay applied

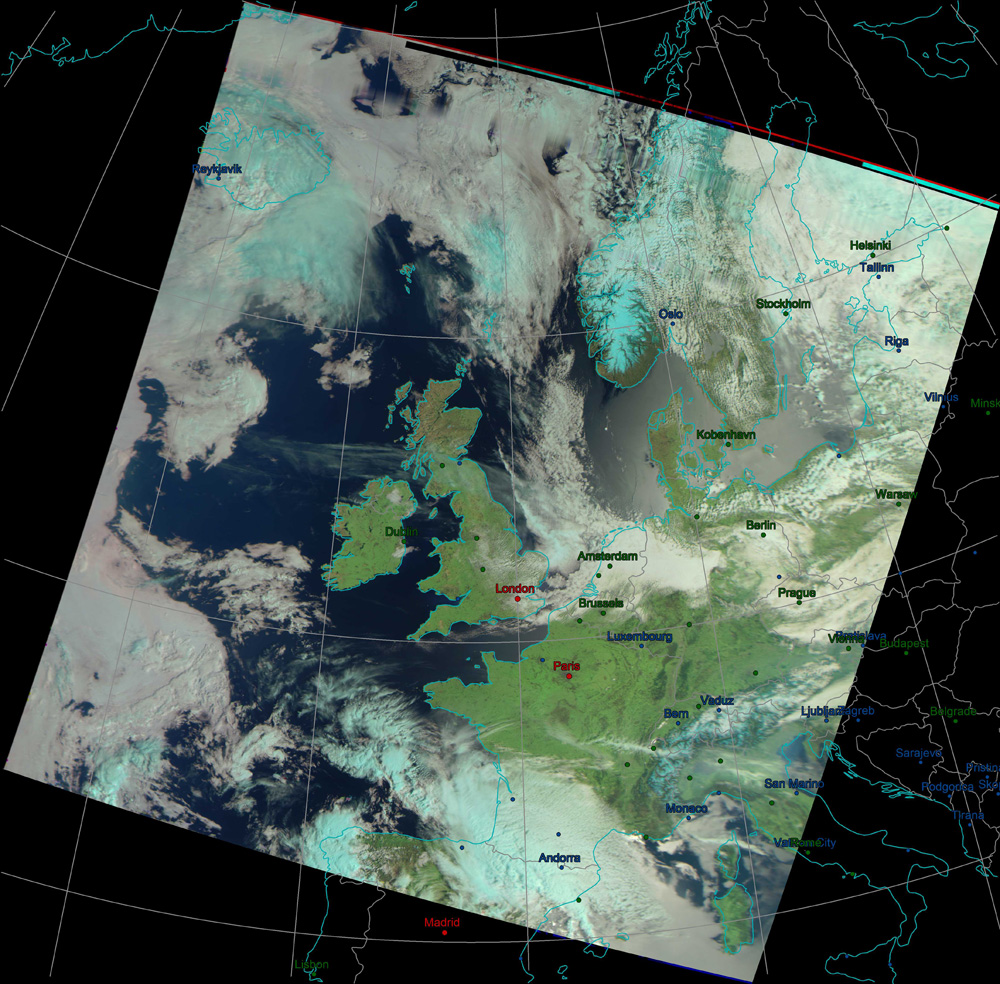

British Isles on April 25, 2021
Shapes=4, Major City overlay applied

Winter images (Meteor channels 1, 2 and 5)

With infrared channel No 5 replacing visible channel 3, different composite images are possible.

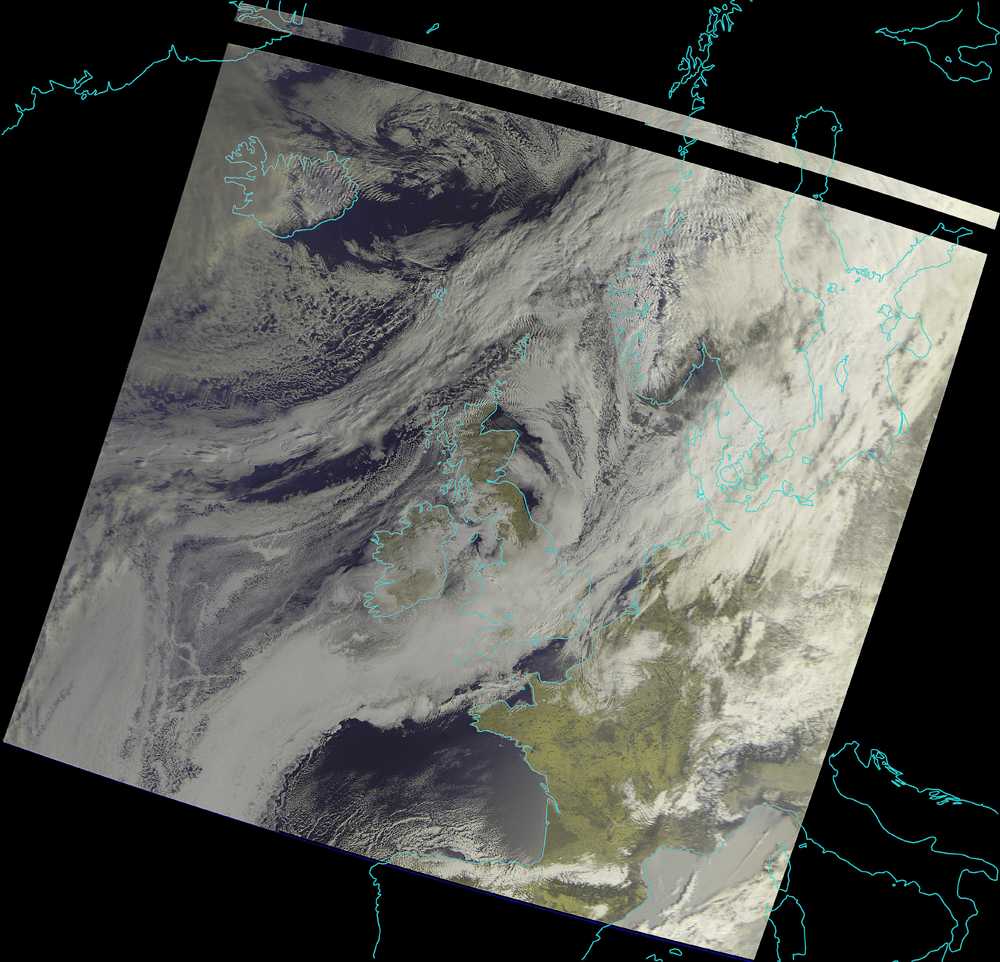

British Isles on March 20, 2021
With only two visible channels available, this is the RGB122 colour composite image

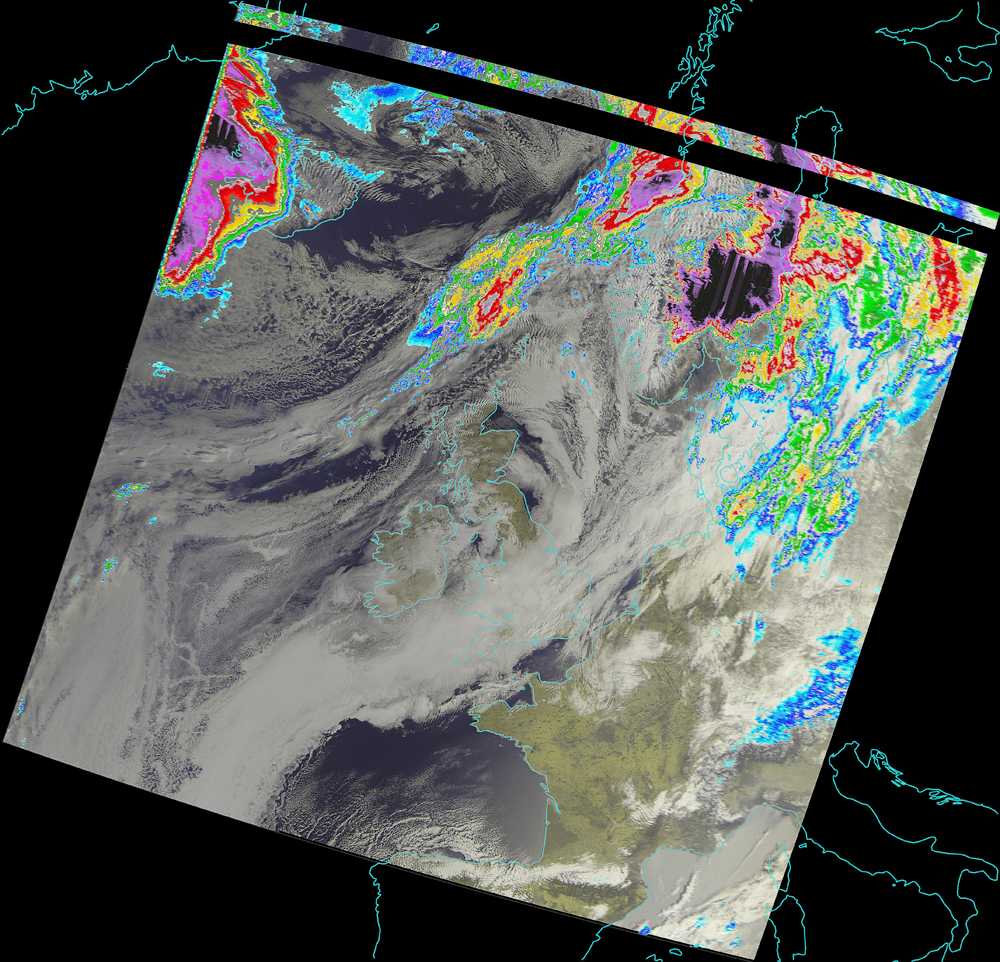

British Isles on March 20, 2021
This is the RGB122 colour composite image with a rainfall overlay generated from a colour palette

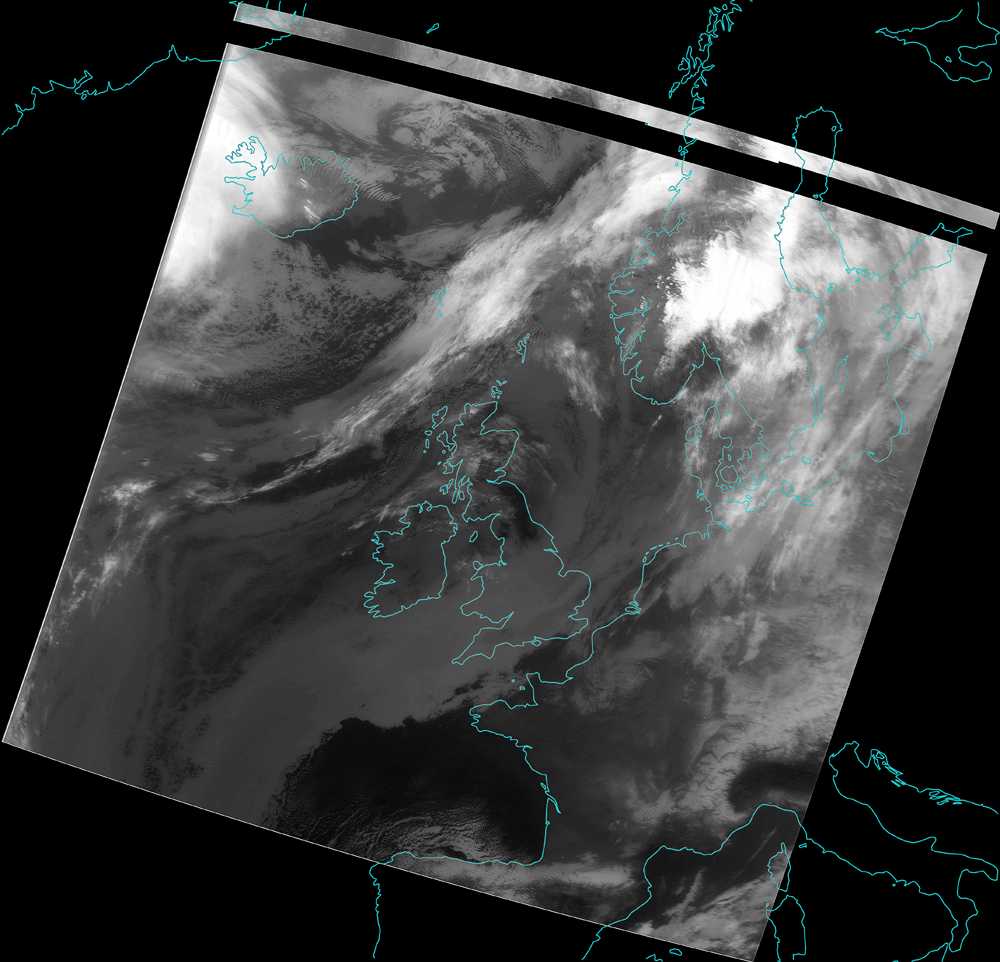

British Isles on March 20, 2021
This is the channel-5 Infrared Image

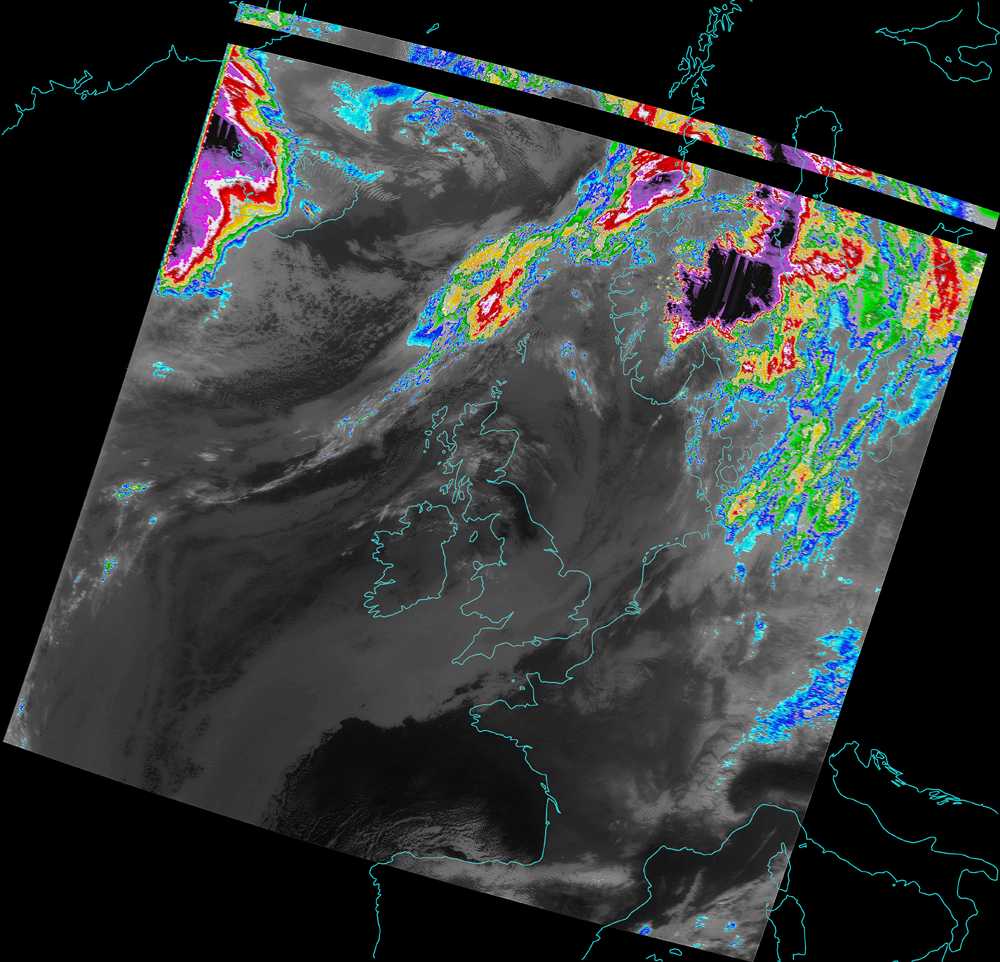

British Isles on March 20, 2021
This is the channel-5 Infrared Image with rainfall overlay

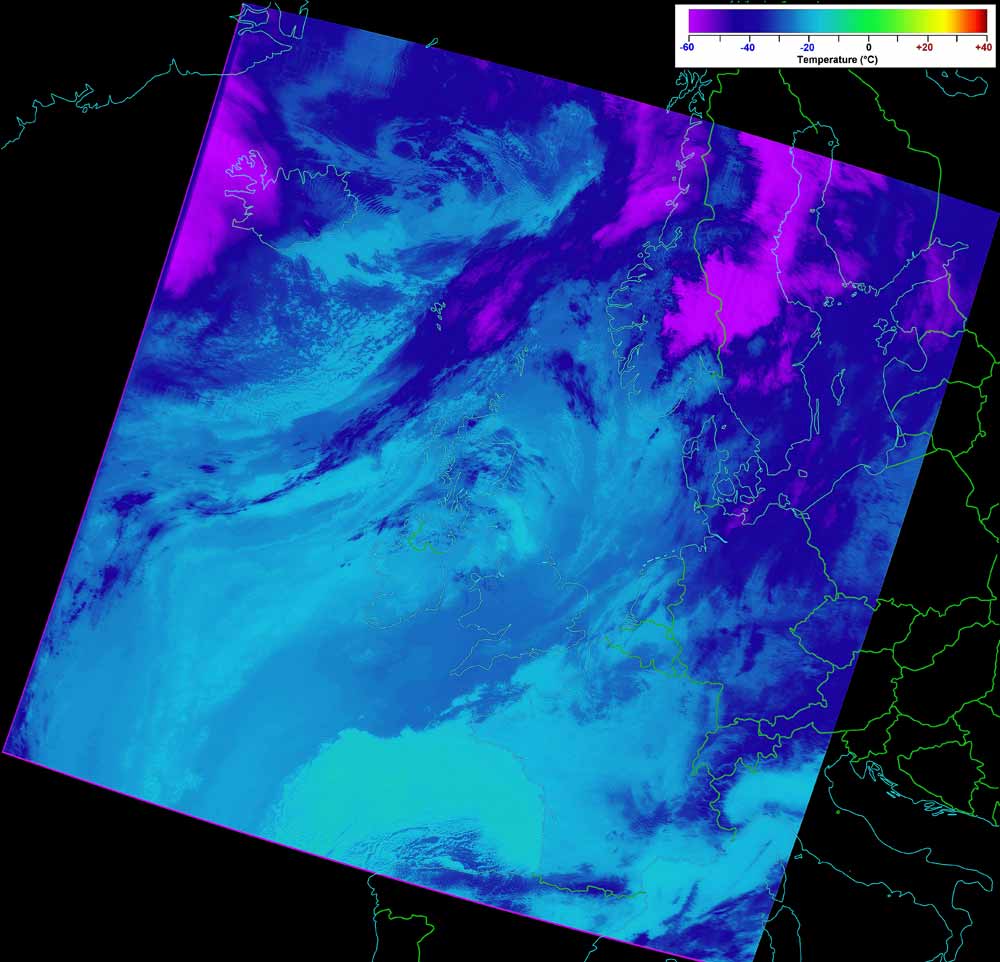

British Isles on March 20, 2021
This is the false colour thermal image with optional temperature scale
